Lug nut patterns have been a critical part of every wheel hub, and Ford Fusion does not stay out of this golden rule.

As part of our beginner guides for Ford’s first-time drivers, today’s article will dig into all there is to know about the Ford Fusion bolt pattern.

What Is The Bolt Pattern for Ford Fusion?

The common bolt patterns of Ford Fusion models are as follows: 4 x 108/ 4 x 4.25 (Fusion I and 2005-2009 Facelift Fusion I ); 5 x 114.3 / 5 x 4.5 (2010-2012 Facelift Fusion I) and 5 x 108/ 5 x 4.25 ( 2013 – 2021 Fusion II and Facelift Fusion II).

This below-listed specifications will delve into specific design elements of each Ford Fusion model line throughout the years:

1. First Series: Fusion I (from 2002 – 2009):

1a. 2002 to 2004:

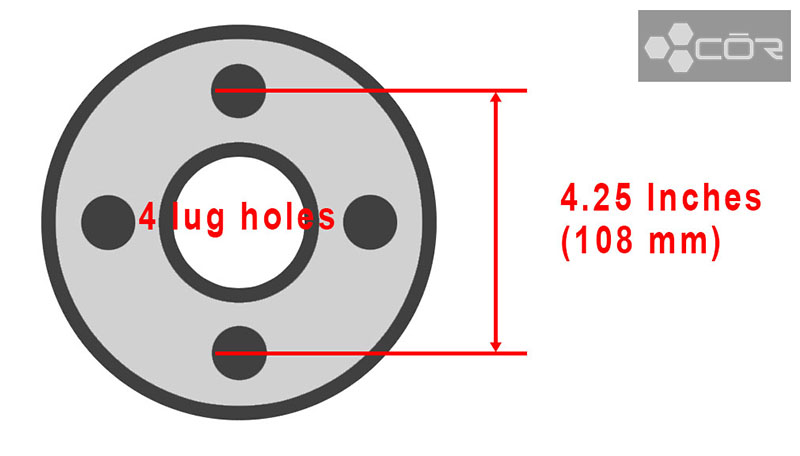

Bolt pattern info: 4 x 108 (mm); 4 x 4.25 (inches)
Model Power: 68 PS/ 50 kW/ 67 HP
Engine type: Diesel, I4
Metal hub ring bore /Center position bore: 63.4 mm
Bolt thread size: 1.5 x M12
Rim width: 5.5 to 6 inches
Rim diameter: 14 to 16 inches
Wheel Offset Range: 35-53

1b. 2005 to 2009:

Bolt pattern or lug pattern: 4 x 108 (mm); 4 x 4.25 (inches)
Power: 75 PS/ 55 kW/ 74 HP
Engine choices: Petrol, I4, FUJB, FUJA, 1.25 L
Hub ring bore/Hub center bore play: 63.4 mm
Rim width: 5.5 to 6 inches
Rim diameter: 14 to 16 inches
Thread: 1.5 x M12
Offset Range: 35-53

2. Second Series: Facelift Fusion I (2005 to 2012):

2a. 2005 to 2009:

Lug bolt pattern: 4 x 108 (mm); 4 x 4.25 (inches)
Power: 75 PS/ 55 kW/ 74 HP
Engine: Petrol, I4, FUJB, FUJA, 1.25 L
Hub bore/Petrol center bore: 63.4 mm
Thread: 1.5 x M12
Rim width: 5.5 to 6 inches
Rim diameter: 14 to 16 inches
Offset Range: 35 – 53

2b. 2010 to 2012:

Bolt pattern: 5 x 114.3 (mm); 5 x 4.5 (inches)
Power: 177 PS/ 130.5 kW/ 175 HP
Engine: Petrol, I4, 2.5 L
Hub bore/Center bore: 67.1 mm
Thread: 1.5 x M12
Rim width: 6.5 inches, 7.5 inches
Rim diameter: 16, 17, 18
Offset Range: 38 – 42

3. Third Series: Fusion II (from 2013 to 2016):

3a. 2013:

Bolt pattern: 5 x 108 (mm); 5 x 4.25 (inches)
Power: 185 PS/ 135.7 kW/ 182 HP
Engine: Petrol, I4
Hub bore/Center bore: 63,4 mm
Thread: 1.5 x M14
Rim width: 6,5; 7.5; 8 inches
Rim diameter: 16, 17, 18, 19
Offset Range: 48 – 52
Tightening Torque Specifications: 135 Nm

3b. 2014 to 2016:

Bolt hole pattern: 5 x 108 (mm); 5 x 4.25 (inches)
Power: 184 PS/ 135.0 kW/ 181 HP
Engine: Petrol, I4
Hub bore/Center bore: 63,4 mm
Thread: 1.5 x M12
Rim width: 6,5; 7.5; 8 inches
Rim diameter: 16, 17, 18, 19
Offset Range: 48 – 52
Tightening Torques: 135 Nm

4. Fourth Series: Facelift Fusion II (from 2017 to 2021):

4a. 2017 and 2018:

Bolt pattern: 5 x 108 (mm); 5 x 4.25 (inches)
Power: 184 PS/ 135.0 kW/ 181 HP
Engine: Petrol, I4
Hub bore/Center bore: 63,4 mm
Thread: 1.5 x M12
Rim width: 6,5; 7.5; 8 inches
Rim diameter: 16, 17, 18, 19
Offset Range: 48 – 52
Tightening Torques: 135 Nm

4b. 2019 to 2021:

Bolt pattern: 5 x 108 (mm); 5 x 4.25 (inches)
Power: 184 PS/ 135.0 kW/ 181 HP
Engine: Petrol, I4, 1.5 L
Hub bore/Center bore: 63,4 mm
Thread: 1.5 x M12
Rim width: 6,5; 7.5; 8 inches
Rim diameter: 16, 17, 18, 19
Offset Range: 48 – 52; 53 – 57
Tightening Torques: 135 Nm
Trim Levels: I KNOW, SEL, SE

What Wheels Fit In A Ford Fusion?

Wheels with rim sizes of 5.5 to 6 inches and 14-16 inches of rim diameters would fit in most Ford Fusion I models. Meanwhile, 6.5-8 inches rim sizes and 16-19 inches in diameter are more compatible with Fusion II. Refer to the spec list above for more info.

How to Find Out Ford Fusion Bolt Pattern? Bolt Circle Measurement

First, count the number of bolts (it should be 4 or 5, typical of Ford Fusion). For bolt pattern diameters, grab a ruler or measuring tape to calculate the gap from the outer nut hole to the center hole opposite it. Put an “x” between the number 4/5 and this measurement, and that is your wheel lug nut pattern!

For 5-lug bolt patterns (odd number), remember to choose the nearest bolt from the right or left and calculate the gap to its central spot.

Can you Fit A 5×112 Wheel Size On A Ford Fusion 5 x 108 Hub?

Yes, if you purchase adapters, redrill the hub with a torque wrench, or modify the custom offset range of aftermarket wheels. Still, major issue risks are at play, and one slight misstep in the bolt fitment might mess up the other hub components. To sidestep fitment issues, it would be best to consult professional help.

Conclusion

There are three different lug wheel bolt patterns in numerous vehicles of the Ford Fusion line – but overall, it is either a 4-lug or 5-lug-hole pattern. Identifying the correct specifications should not be difficult with a basic ruler or measuring tape.

Consult the manufacturer’s manual or write to me if there are any confusing parts about your model vehicle’s wheel and tire assembly.
